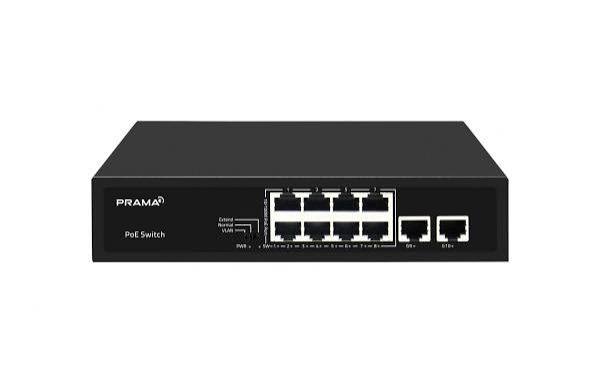

Prama 8 Port PoE Switch with 2 Uplinks

₹1,829.00

Key Features: 10-port 100 Mbps unmanaged network switch featuring 8 PoE ports and 2 RJ45 uplink ports designed for multi-camera CCTV surveillance and IP network setups.
Working Modes: Built-in DIP switch supporting Default, VLAN (Port Isolation & PoE Watchdog), and Extend Mode for up to 250m long-distance transmission.
Warranty & Exclusions: Standard manufacturer warranty included as per manufacturer terms.
Power Budget: Reliable power delivery supporting up to 30W per PoE port (total power budget approx. 96W).
Installation & Support: Technical support and installation guidance available upon request via service.sysint.in.

SKU: PT-SW1U10P-E Categories: CCTV IP, POE/Rack, All Brand: Prama

Technical Specifications for Prama PT-SW1U10P-E 8 Port PoE Switch

Model / SKU: PT-SW1U10P-E
Port Configuration: 8 × 10/100 Mbps PoE RJ45 ports and 2 × 10/100 Mbps RJ45 Uplink ports.
Switching Capacity: 2 Gbps switching performance with store-and-forward architecture.
Transmission Modes: Standard (100m), VLAN (Port Isolation with Watchdog), and Extend Mode (up to 250m at 10 Mbps for long-run cameras).
PoE Standards & Budget: IEEE 802.3af/at compliant with built-in surge protection (4KV common mode, 2KV differential mode).
Power Supply: Built-in or external power adapter supporting AC 100-240V.
